PCA & Low-Rank Approximation

Overview & Motivation

The SVD established that the right singular vectors of a centered data matrix $X$ are the principal components, and that the Eckart–Young–Mirsky theorem makes the truncated SVD the optimal low-rank approximation. This topic develops PCA as a standalone framework — starting from the variance-maximization problem, connecting it to the SVD and the Spectral Theorem, and extending it to the modern variants that handle nonlinear, corrupted, and high-dimensional data.

Principal Component Analysis (PCA) finds the orthogonal directions of maximum variance in a dataset $X \in \mathbb{R}^{n \times d}$ (rows = observations, columns = features). It answers a simple question: if we could keep only $k < d$ directions, which $k$ directions capture the most information?

The answer is the top $k$ eigenvectors of the sample covariance matrix $\hat{\Sigma} = \frac{1}{n-1} X^T X$ — equivalently, the top $k$ right singular vectors of $X$. This topic covers:

• Variance maximization: PCA as a constrained optimization problem (Rayleigh quotient).
• Optimal projection: the Eckart–Young connection — PCA is the best $k$-dimensional linear projection.
• The scree plot: heuristics for choosing $k$ (elbow, Kaiser, parallel analysis).
• Kernel PCA: extending PCA to nonlinear manifolds via the kernel trick.
• Probabilistic PCA: a latent variable model that handles missing data and provides a generative framework.

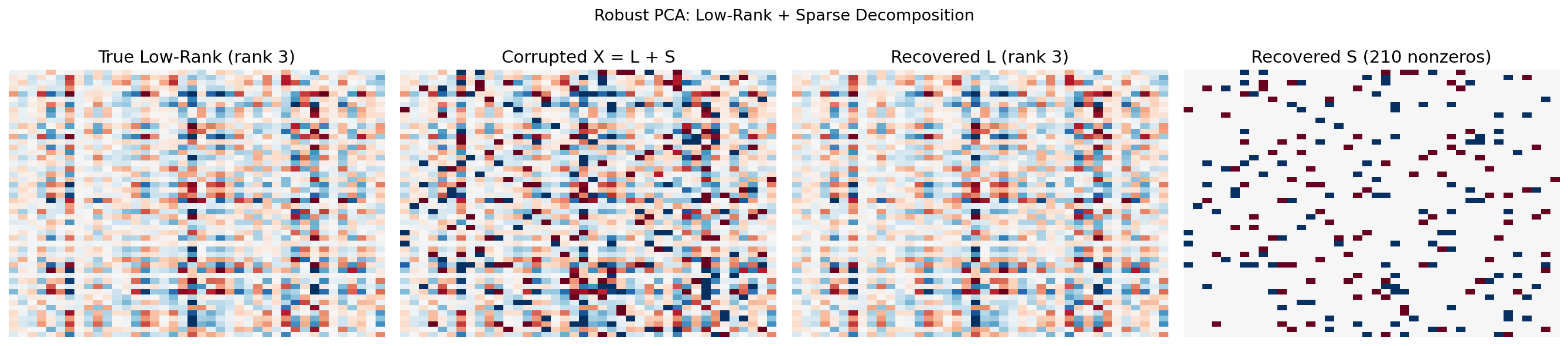

• Robust PCA: separating low-rank structure from sparse corruption (Principal Component Pursuit).

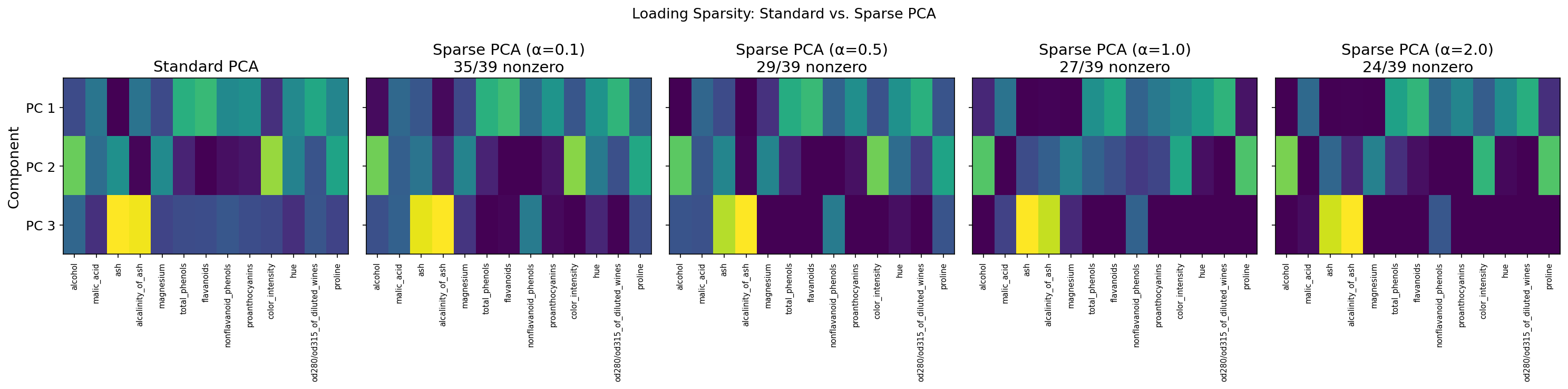

• Sparse PCA: interpretable principal components via $\ell_1$-penalized loadings.

What We Cover

1. PCA from First Principles — the Rayleigh quotient and sequential variance maximization.
2. PCA via the SVD — the correspondence table and numerical superiority.
3. Geometric Interpretation — optimal projection and the dual view (variance = error minimization).
4. The Scree Plot — dimensionality selection (elbow, Kaiser, parallel analysis).
5. Low-Rank Approximation — the Eckart–Young connection and effective rank.
6. Computing PCA in Practice — scikit-learn classes and the standardization question.
7. The Biplot — visualizing observations and variables together.
8. Kernel PCA — nonlinear dimensionality reduction via the kernel trick.
9. Probabilistic PCA — the latent variable model and EM for missing data.
10. Robust PCA — Principal Component Pursuit for low-rank + sparse decomposition.
11. Sparse PCA — interpretable loadings via $\ell_1$ regularization.

---

PCA from First Principles: Variance Maximization

The Setup

Let $X \in \mathbb{R}^{n \times d}$ be a centered data matrix ($n$ observations, $d$ features, column means subtracted). The sample covariance matrix is:

$\hat{\Sigma} = \frac{1}{n-1} X^T X \in \mathbb{R}^{d \times d}$

This matrix is symmetric and positive semi-definite. By the Spectral Theorem, it has an orthogonal eigendecomposition:

$\hat{\Sigma} = Q \Lambda Q^T$

with eigenvalues $\lambda_1 \geq \lambda_2 \geq \cdots \geq \lambda_d \geq 0$ and orthonormal eigenvectors $q_1, \ldots, q_d$.

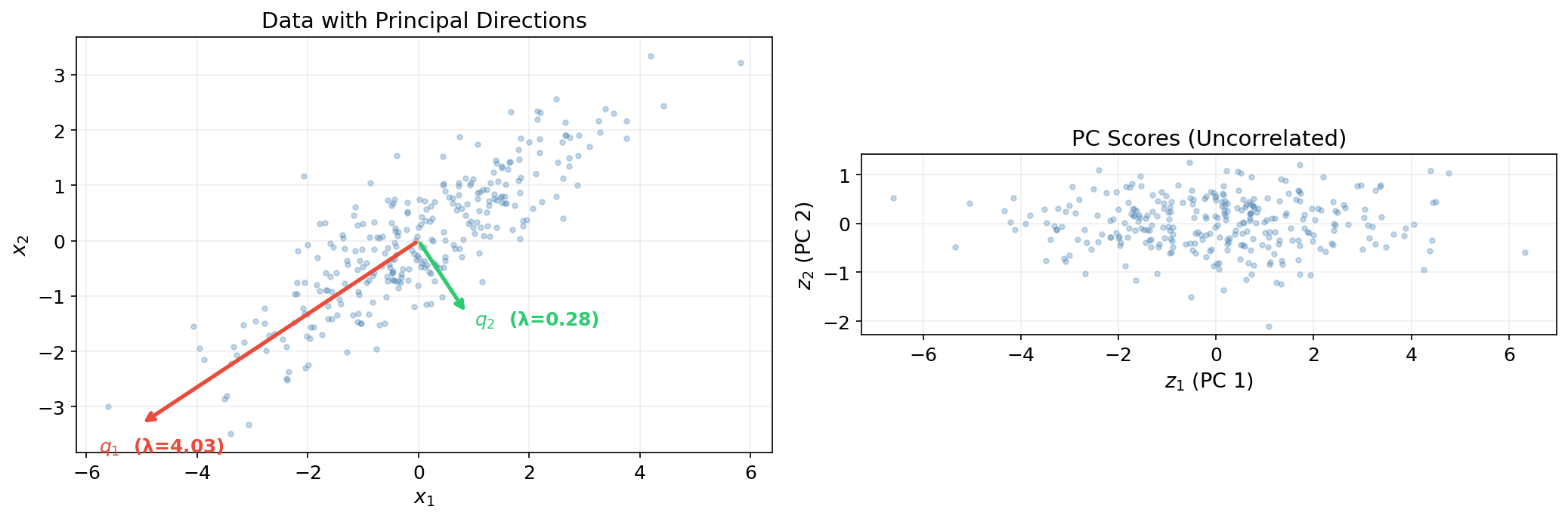

The Variance-Maximization Problem

The first principal component is the unit vector $w_1$ that maximizes the variance of the projection $Xw_1$:

$w_1 = \arg\max_{\|w\| = 1} \text{Var}(Xw) = \arg\max_{\|w\| = 1} w^T \hat{\Sigma} w$

This is a Rayleigh quotient problem. By the Spectral Theorem (specifically, the Courant–Fischer minimax principle), the maximum is achieved at $w_1 = q_1$ (the top eigenvector), and the maximum variance is $\lambda_1$.

Covariance Matrix Σ

3.0001.2731.2731.500

Eigenvalues

λ₁ = 3.727λ₂ = 0.773

Eigenvectors

q₁ = [0.868, 0.496]

q₂ = [-0.496, 0.868]

Explained Variance Ratio

PC1: 82.8% · PC2: 17.2%

Condition Number

κ = λ₁/λ₂ = 4.82

Rayleigh Quotient R(θ) = w⊤Σw

3.00max = λ₁ = 3.73

σ₁² = 3.00σ₂² = 1.50ρ = 0.60θ = 0.00 rad (0.00°)

Regenerate DataShow Projection

The Principal Components

The principal components (or PC scores) are the projections of the data onto the eigenvectors:

$Z = XQ \in \mathbb{R}^{n \times d}$

where $Z_{ij} = x_i^T q_j$ is the $i$-th observation’s coordinate along the $j$-th principal direction. The columns of $Z$ are uncorrelated with variances $\lambda_1, \ldots, \lambda_d$:

$\frac{1}{n-1} Z^T Z = \frac{1}{n-1} Q^T X^T X Q = Q^T \hat{\Sigma} Q = \Lambda$

This diagonalization — transforming correlated features into uncorrelated components ordered by variance — is the essence of PCA.

---

PCA via the SVD

The SVD Connection

The SVD topic §8 established the fundamental connection. We now develop it fully.

Let $X = U \Sigma V^T$ be the SVD of the centered data matrix. Then:

$\hat{\Sigma} = \frac{1}{n-1} X^T X = \frac{1}{n-1} V \Sigma^T \Sigma V^T = V \left(\frac{\Sigma^2}{n-1}\right) V^T$

Comparing with the Spectral Theorem decomposition $\hat{\Sigma} = Q \Lambda Q^T$:

PCA quantity	Spectral Theorem	SVD
Principal directions	Eigenvectors $q_i$ of $\hat{\Sigma}$	Right singular vectors $v_i$ of $X$
Eigenvalues (variances)	$\lambda_i$	$\sigma_i^2 / (n - 1)$
PC scores	$Z = XQ$	$Z = U\Sigma$
Explained variance ratio	$\lambda_i / \sum \lambda_j$	$\sigma_i^2 / \sum \sigma_j^2$

Numerical Superiority of the SVD

Forming $X^T X$ explicitly squares the condition number: $\kappa(X^T X) = \kappa(X)^2$. For ill-conditioned data, the smallest eigenvalues can be lost to floating-point roundoff. The SVD computes the same decomposition directly on $X$, preserving numerical accuracy. This is why every serious PCA implementation uses the SVD internally.

import numpy as np

# PCA via eigendecomposition vs. SVD: verify the connection
np.random.seed(42)
n, d = 500, 3
cov_true = np.array([[3.0, 1.5, 0.5], [1.5, 2.0, 0.3], [0.5, 0.3, 0.5]])
X = np.random.multivariate_normal(np.zeros(d), cov_true, n)
X_centered = X - X.mean(axis=0)

# Method 1: Spectral Theorem on covariance
Sigma_hat = (X_centered.T @ X_centered) / (n - 1)
evals_eig, Q = np.linalg.eigh(Sigma_hat)
idx = np.argsort(evals_eig)[::-1]
evals_eig, Q = evals_eig[idx], Q[:, idx]

# Method 2: SVD of centered data
U, sigma, Vt = np.linalg.svd(X_centered, full_matrices=False)
evals_svd = sigma**2 / (n - 1)

# Eigenvalues match: λ_i = σ_i² / (n-1)
for i in range(d):
    print(f"  λ_{i+1}: eigendecomp = {evals_eig[i]:.6f}  SVD = {evals_svd[i]:.6f}")

# Condition numbers: SVD avoids squaring
print(f"\n  κ(X) = {sigma[0]/sigma[-1]:.2f}")
print(f"  κ(X^T X) = {evals_eig[0]/evals_eig[-1]:.2f}  ≈  κ(X)² = {(sigma[0]/sigma[-1])**2:.2f}")

---

Geometric Interpretation

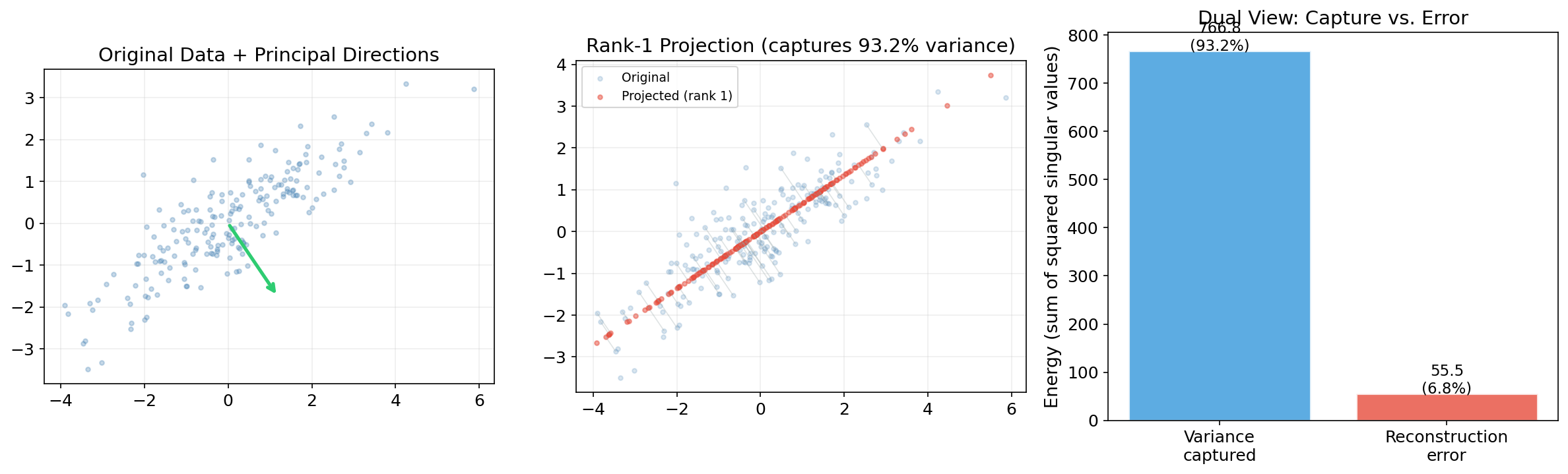

PCA as Optimal Linear Projection

PCA finds the $k$-dimensional subspace that best preserves the data’s variance. Equivalently, it finds the projection that minimizes reconstruction error.

The Dual View: Variance Maximization = Error Minimization

PCA simultaneously:

1. Maximizes the variance of the projected data: $\sum_{j=1}^{k} \lambda_j$.
2. Minimizes the reconstruction error: $\sum_{j=k+1}^{d} \lambda_j$.

Since total variance $= \sum_{j=1}^{d} \lambda_j$ is constant, maximizing (1) is equivalent to minimizing (2). This dual view is central to understanding dimensionality reduction.

The Reconstruction Formula

Given the top $k$ principal components $V_k = [v_1, \ldots, v_k]$ and PC scores $Z_k = X V_k$, the rank-$k$ reconstruction is:

$\hat{X}_k = Z_k V_k^T = X V_k V_k^T$

The projection matrix $P_k = V_k V_k^T$ is the orthogonal projector onto the principal subspace.

---

The Scree Plot and Dimensionality Selection

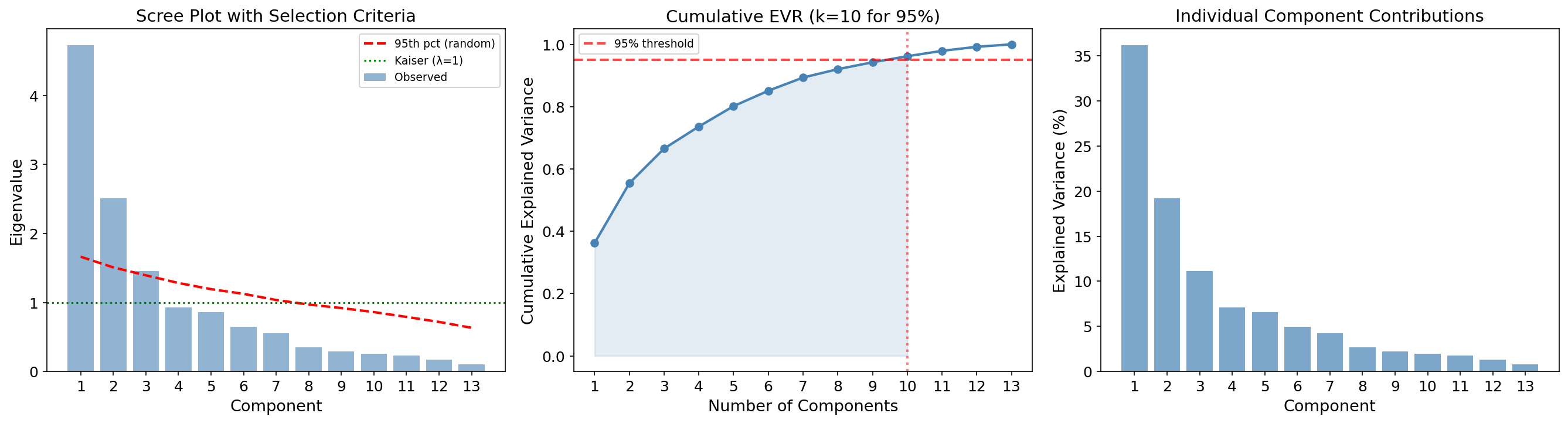

The Scree Plot

The scree plot displays the eigenvalues (or singular values, or explained variance ratios) in descending order. The goal is to identify the “elbow” — the point where the eigenvalues transition from large (signal) to small (noise).

Selection Criteria

Several heuristics exist for choosing the number of components $k$:

Method	Rule	When to use
Elbow method	Choose $k$ at the “bend” in the scree plot	Visual; subjective but widely used
Kaiser criterion	Keep components with $\lambda_i > 1$ (for standardized data)	Only for correlation-matrix PCA
Explained variance threshold	Choose smallest $k$ s.t. $\text{EVR}(k) \geq \tau$ (e.g., $\tau = 0.95$)	When a target variance fraction is needed
Parallel analysis	Compare eigenvalues to those from random data of the same dimensions	Most statistically principled

Parallel Analysis

Parallel analysis (Horn, 1965) generates many random datasets of the same size ($n \times d$) from i.i.d. standard normals, computes their eigenvalues, and retains only those components whose observed eigenvalues exceed the 95th percentile of the random eigenvalues. This controls for the “eigenvalue inflation” that occurs in finite samples.

DatasetWine (13 features)Synthetic low-rank (20 features, true rank 3)Synthetic high-rank (20 features, no clear elbow)

Eigenvalue spectrum

Cumulative explained variance

Selected k = 2 — explains 55.4% of total variance.(Click a bar to change k.)

Criteria comparison: Kaiser = 3  |  Parallel analysis = 2  |  Elbow = 2  |  95% threshold = 10

from sklearn.datasets import load_wine
from sklearn.preprocessing import StandardScaler

# Load and standardize the Wine dataset (13 features)
wine = load_wine()
X_wine = StandardScaler().fit_transform(wine.data)
n, d = X_wine.shape

# PCA via SVD
U, sigma, Vt = np.linalg.svd(X_wine, full_matrices=False)
eigenvalues = sigma**2 / (n - 1)
evr = eigenvalues / eigenvalues.sum()
cumulative_evr = np.cumsum(evr)

# Parallel analysis: compare to eigenvalues from random data
n_permutations = 100
random_eigenvalues = np.zeros((n_permutations, d))
for j in range(n_permutations):
    X_random = np.random.randn(n, d)
    _, s_rand, _ = np.linalg.svd(X_random, full_matrices=False)
    random_eigenvalues[j] = s_rand**2 / (n - 1)

random_95th = np.percentile(random_eigenvalues, 95, axis=0)
k_parallel = np.sum(eigenvalues > random_95th)

# Selection results
k_kaiser = np.sum(eigenvalues > 1.0)
k_95 = np.searchsorted(cumulative_evr, 0.95) + 1

print(f"Kaiser criterion (λ > 1): k = {k_kaiser}")
print(f"95% variance threshold:   k = {k_95}")
print(f"Parallel analysis:        k = {k_parallel}")

---

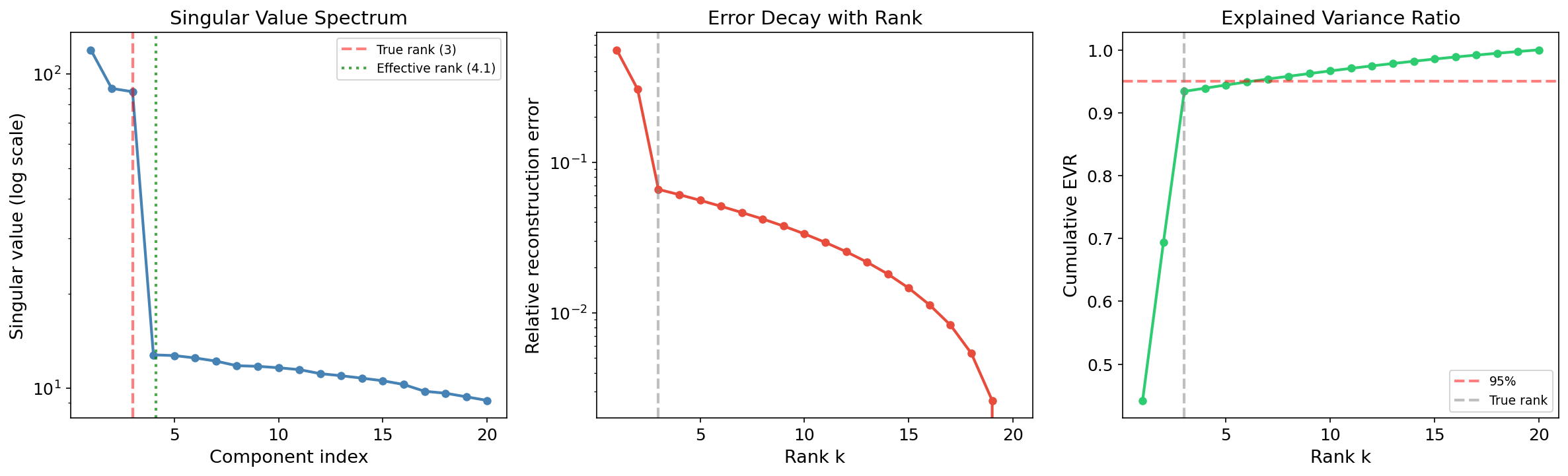

Low-Rank Approximation as Optimal Projection

The Eckart–Young Connection

The Eckart–Young–Mirsky theorem states that the best rank-$k$ approximation to $A$ is the truncated SVD $A_k$. Applied to the centered data matrix $X$:

$X_k = U_k \Sigma_k V_k^T = \text{(PC scores)}_k \times \text{(principal directions)}_k^T$

This is exactly the PCA reconstruction: project onto the top $k$ PCs, then reconstruct. The Eckart–Young theorem guarantees this is optimal among all rank-$k$ approximations.

Effective Rank

---

Computing PCA in Practice

scikit-learn

Class	When to use	Algorithm
PCA(n_components=k)	Moderate data; exact PCA	Full SVD via LAPACK or randomized SVD (auto)
PCA(svd_solver='randomized')	Large $d$, small $k$	Halko–Martinsson–Tropp randomized SVD
IncrementalPCA(n_components=k)	Out-of-core / streaming	Incremental SVD update
TruncatedSVD(n_components=k)	Sparse matrices (text, graphs)	ARPACK or randomized

Standardize or Not?

• Standardize (scale to unit variance) when features have different units or very different scales. PCA on the correlation matrix $R = D^{-1/2} \hat{\Sigma} D^{-1/2}$ where $D = \text{diag}(\hat{\Sigma})$.
• Don’t standardize when features are commensurable (same units, similar scales) — PCA on the covariance matrix preserves the natural scaling.

The Kaiser criterion ($\lambda > 1$) only makes sense when PCA is computed on the correlation matrix (standardized data), because the average eigenvalue of a $d \times d$ correlation matrix is exactly 1.

---

Application: High-Dimensional Data Visualization

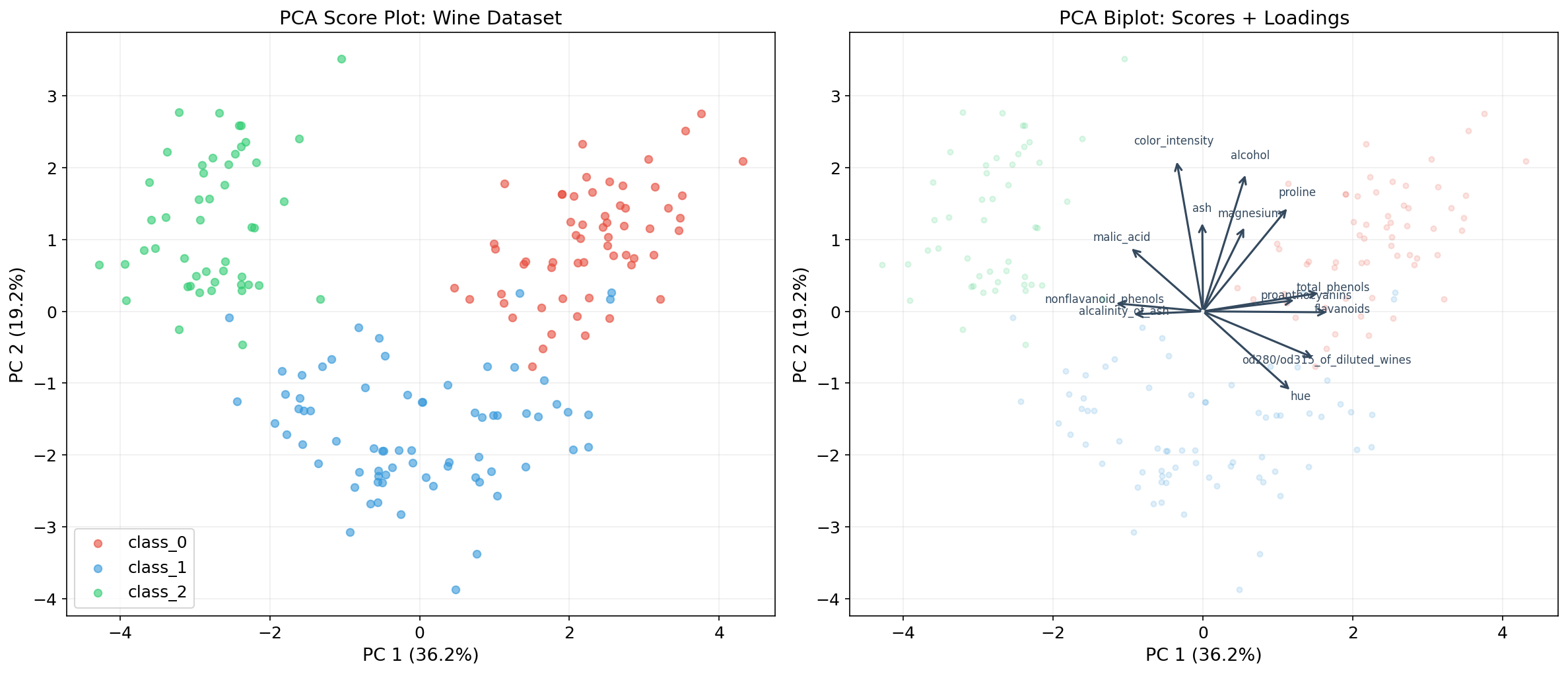

The Biplot

The biplot (Gabriel, 1971) simultaneously displays observations (PC scores) and variables (loadings) in the principal component space. It is the standard visualization for PCA results:

• Observations are plotted as points using PC scores $(z_{i1}, z_{i2})$.
• Variables are plotted as arrows (loading vectors) showing each original feature’s contribution to the PCs.
• Arrow length indicates the feature’s variance explained by the displayed PCs.
• Arrow angle between two features approximates their correlation (small angle ≈ high positive correlation; 90° ≈ uncorrelated; 180° ≈ high negative correlation).

Interpreting Loadings

The loadings are the entries of the principal component vectors $v_j$. The loading $v_{jk}$ tells us how much feature $k$ contributes to PC $j$. Large loadings (in absolute value) indicate features that are important for that component.

---

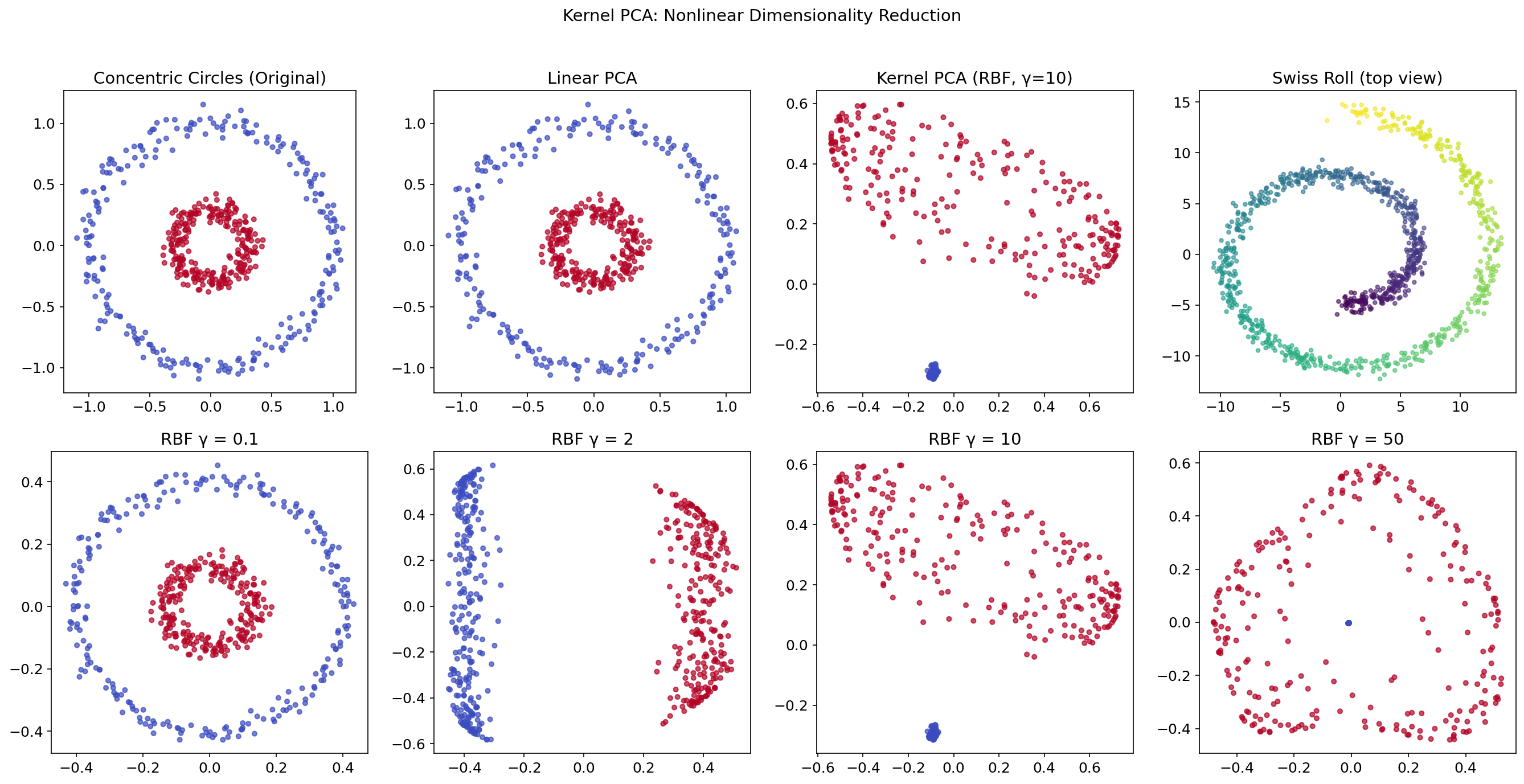

Kernel PCA

The Limitation of Linear PCA

Linear PCA finds directions of maximum variance in the original feature space. But many real datasets have nonlinear structure — data lying on a curved manifold (Swiss roll), concentric circles, or a spiral. Linear PCA cannot “unfold” these structures.

The Kernel Trick

Kernel PCA (Schölkopf, Smola & Müller, 1998) applies PCA in a high-dimensional (possibly infinite-dimensional) feature space $\phi(x) \in \mathcal{H}$ without ever computing $\phi$ explicitly:

1. Compute the $n \times n$ kernel matrix $K_{ij} = \kappa(x_i, x_j)$ where $\kappa$ is a kernel function.
2. Center the kernel matrix: $\tilde{K} = K - \frac{1}{n} \mathbf{1} K - \frac{1}{n} K \mathbf{1} + \frac{1}{n^2} \mathbf{1} K \mathbf{1}$.
3. Eigendecompose: $\tilde{K} = \alpha \Lambda \alpha^T$ (Spectral Theorem, since $\tilde{K}$ is symmetric PSD).
4. The kernel PC scores are $Z_k = \alpha_k \sqrt{\lambda_k}$ for the top $k$ eigenvectors.

DatasetConcentric circlesTwo moonsSwiss roll (top view)

KernelLinearRBF

γ = 1

Original data

RBF Kernel PCA (γ=1)

Kernel matrix

200 points  |  Kernel: RBF exp(-γ‖x−y‖²), γ=1

from sklearn.decomposition import PCA, KernelPCA
from sklearn.datasets import make_circles

# Concentric circles: linear PCA fails, kernel PCA succeeds
X_circles, y_circles = make_circles(n_samples=500, factor=0.3, noise=0.05)

# Linear PCA cannot separate the two rings
Z_linear = PCA(n_components=2).fit_transform(X_circles)

# RBF Kernel PCA separates them
Z_rbf = KernelPCA(n_components=2, kernel='rbf', gamma=10).fit_transform(X_circles)

# The bandwidth γ controls locality:
#   Small γ → global (nearly linear)
#   Large γ → local (sharp boundaries)
for gamma in [0.1, 2, 10, 50]:
    kpca = KernelPCA(n_components=2, kernel='rbf', gamma=gamma)
    Z = kpca.fit_transform(X_circles)
    print(f"  γ = {gamma:5.1f}: separation quality varies")

---

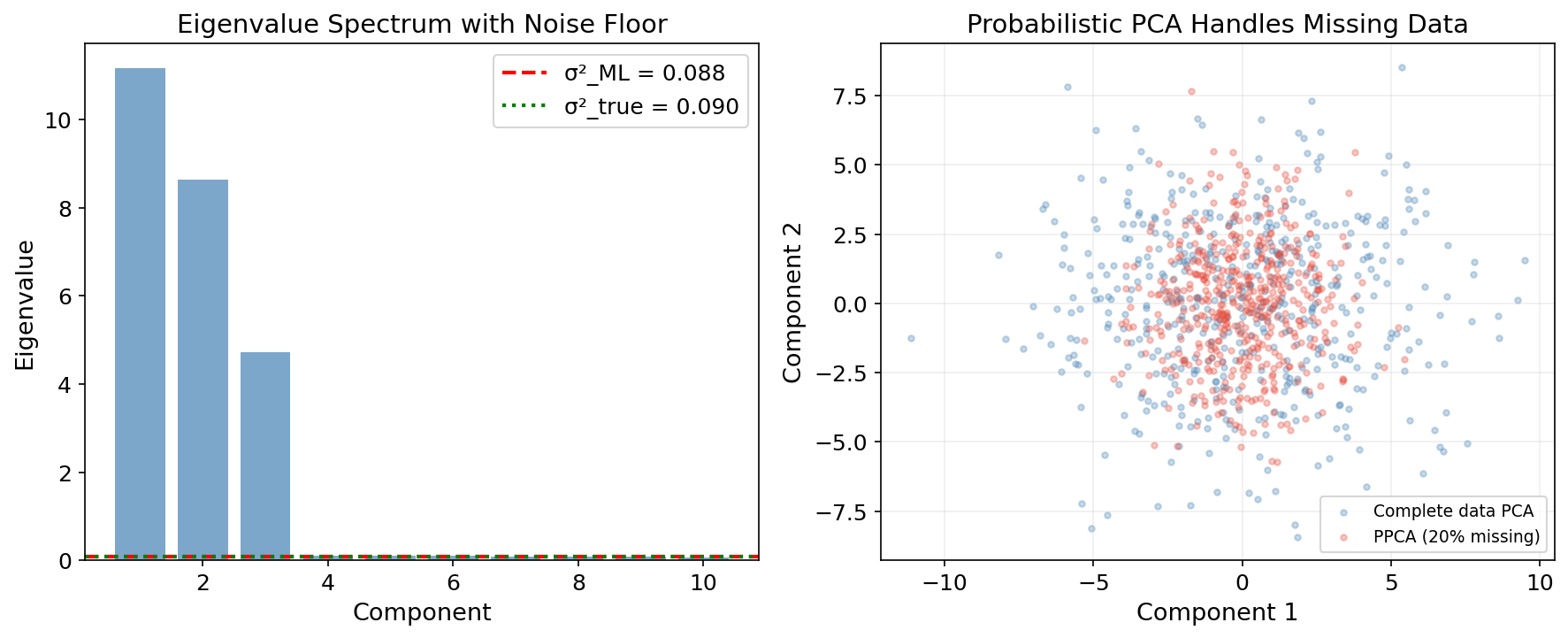

Probabilistic PCA

PCA as a Latent Variable Model

Probabilistic PCA (Tipping & Bishop, 1999) recasts PCA as a generative model:

$x = Wz + \mu + \varepsilon$

where:

• $z \sim \mathcal{N}(0, I_k)$ is a $k$-dimensional latent variable.
• $W \in \mathbb{R}^{d \times k}$ is the loading matrix.
• $\mu \in \mathbb{R}^d$ is the data mean.
• $\varepsilon \sim \mathcal{N}(0, \sigma^2 I_d)$ is isotropic Gaussian noise.

Why Probabilistic PCA?

1. Missing data: the EM algorithm naturally handles incomplete observations.
2. Model comparison: the marginal likelihood allows Bayesian model selection for $k$.
3. Generative model: we can sample new data points from $p(x)$.
4. Mixture of PPCA: captures multimodal structure (cluster-specific PCA).

def ppca_em(X, k, n_iter=100, missing_mask=None):
    """Probabilistic PCA via EM. missing_mask[i,j]=True means X[i,j] is missing."""
    n, d = X.shape
    mu = np.nanmean(X, axis=0) if missing_mask is not None else X.mean(axis=0)
    W = np.random.randn(d, k) * 0.1
    sigma2 = 1.0

    for iteration in range(n_iter):
        # E-step: posterior p(z|x) = N(M^{-1} W^T (x - mu), sigma^2 M^{-1})
        M = W.T @ W + sigma2 * np.eye(k)
        M_inv = np.linalg.inv(M)

        Ez = np.zeros((n, k))
        Ezz = np.zeros((n, k, k))

        for i in range(n):
            if missing_mask is not None and np.any(missing_mask[i]):
                obs = ~missing_mask[i]
                W_obs = W[obs, :]
                x_obs = X[i, obs] - mu[obs]
                M_obs = W_obs.T @ W_obs + sigma2 * np.eye(k)
                Ez[i] = np.linalg.solve(M_obs, W_obs.T @ x_obs)
                Ezz[i] = sigma2 * np.linalg.inv(M_obs) + np.outer(Ez[i], Ez[i])
            else:
                xi = X[i] - mu
                Ez[i] = M_inv @ W.T @ xi
                Ezz[i] = sigma2 * M_inv + np.outer(Ez[i], Ez[i])

        # M-step: update W and sigma^2
        S1 = np.zeros((d, k))
        S2 = np.zeros((k, k))
        for i in range(n):
            xi = X[i] - mu
            if missing_mask is not None and np.any(missing_mask[i]):
                obs = ~missing_mask[i]
                S1[obs] += np.outer(xi[obs], Ez[i])
            else:
                S1 += np.outer(xi, Ez[i])
            S2 += Ezz[i]

        W = S1 @ np.linalg.inv(S2)
        # ... (noise variance update continues)

    return W, sigma2, mu

---

Robust PCA: Principal Component Pursuit

The Problem

Standard PCA is sensitive to gross corruption: a few large outliers or structured noise can distort the principal components. Robust PCA (Candès, Li, Ma & Wright, 2011) separates the data matrix into a low-rank component $L$ and a sparse component $S$:

$X = L + S$

where $L$ captures the “clean” low-rank structure and $S$ captures sparse corruption (outliers, anomalies).

Principal Component Pursuit

The nuclear norm promotes low rank; the $\ell_1$ norm promotes sparsity. This convex relaxation can be solved efficiently by the Alternating Direction Method of Multipliers (ADMM).

True rank: 3

12358

Corruption: 10%

5%10%15%20%30%

Recovered rank

3 / 3 true

Nonzero in S

76 / 750 entries

Corruption

10%

Relative error

12.6%

Applications

• Video surveillance: $L$ = static background, $S$ = moving foreground objects.
• Face recognition: $L$ = faces under normal lighting, $S$ = shadows and occlusions.
• Financial data: $L$ = systematic market factors, $S$ = idiosyncratic shocks or anomalies.

def robust_pca_admm(X, lam=None, mu=None, tol=1e-7, max_iter=500):
    """Robust PCA via ADMM (Principal Component Pursuit).

    Solves: min ||L||_* + λ||S||_1  s.t. L + S = X
    """
    m, n = X.shape
    if lam is None:
        lam = 1.0 / np.sqrt(max(m, n))
    if mu is None:
        mu = m * n / (4.0 * np.sum(np.abs(X)))

    L = np.zeros_like(X)
    S = np.zeros_like(X)
    Y = np.zeros_like(X)  # dual variable

    def soft_threshold(Z, threshold):
        return np.sign(Z) * np.maximum(np.abs(Z) - threshold, 0)

    def svd_threshold(Z, threshold):
        U, sigma, Vt = np.linalg.svd(Z, full_matrices=False)
        sigma_thresh = np.maximum(sigma - threshold, 0)
        return U @ np.diag(sigma_thresh) @ Vt, np.sum(sigma_thresh > 0)

    for iteration in range(max_iter):
        # Update L (nuclear norm proximal operator)
        L, rank_L = svd_threshold(X - S + Y / mu, 1.0 / mu)

        # Update S (L1 proximal operator)
        S = soft_threshold(X - L + Y / mu, lam / mu)

        # Update dual variable
        residual = X - L - S
        Y = Y + mu * residual

        if np.linalg.norm(residual, 'fro') / np.linalg.norm(X, 'fro') < tol:
            break

    return L, S

---

Sparse PCA

The Interpretability Problem

Standard PCA components are linear combinations of all features — every loading is typically nonzero. In high-dimensional settings ($d \gg n$), this makes PCs hard to interpret: what does a component that loads on all 10,000 genes actually mean?

Sparse PCA Formulation

Sparse PCA adds an $\ell_1$ penalty to the loadings to encourage sparsity:

$\max_{\|w\| = 1} \, w^T \hat{\Sigma} w - \alpha \|w\|_1$

where $\alpha > 0$ controls the sparsity–variance trade-off. Larger $\alpha$ → fewer nonzero loadings → more interpretable but less variance explained.

from sklearn.decomposition import SparsePCA, PCA

# Compare standard PCA vs. Sparse PCA on the Wine dataset
wine = load_wine()
X_std = StandardScaler().fit_transform(wine.data)

pca = PCA(n_components=3).fit(X_std)
spca = SparsePCA(n_components=3, alpha=1.0, random_state=42).fit(X_std)

# Standard PCA: all 13 features contribute to each component
print("Standard PCA loadings (PC 1):")
print(f"  Nonzero: {np.sum(np.abs(pca.components_[0]) > 0.01)}/13")

# Sparse PCA: only a few features per component
print("Sparse PCA loadings (PC 1):")
print(f"  Nonzero: {np.sum(np.abs(spca.components_[0]) > 0.01)}/13")

---

Connections & Further Reading

PCA stands at the crossroads of the Linear Algebra track and the rest of the formalML curriculum.

Topic	PCA Connection
The Spectral Theorem	PCA eigendecomposition is the Spectral Theorem applied to $\hat{\Sigma}$. The Rayleigh quotient and Courant–Fischer theorem give the variance-maximization formulation.
Singular Value Decomposition	PCA is the SVD of the centered data matrix. The Eckart–Young theorem makes PCA the optimal low-rank projection. The SVD avoids squaring the condition number.
Tensor Decompositions	Tucker decomposition generalizes PCA to multi-way arrays. Multilinear PCA (MPCA) applies PCA along each tensor mode.
Persistent Homology	PCA is often a preprocessing step for TDA: reduce dimensionality before computing persistent homology. The explained variance ratio guides the choice of dimensionality.
The Mapper Algorithm	Mapper frequently uses PCA (via SVD) as a filter function — projecting data onto the first 1–2 principal components before the covering step.
Sheaf Theory	The Sheaf Laplacian’s eigendecomposition (Spectral Theorem) combined with PCA on the resulting feature vectors provides multi-scale structural analysis.
Measure-Theoretic Probability	The Law of Large Numbers justifies why $\hat{\Sigma} \to \Sigma$; the $L^2$ projection interpretation of conditional expectation is the infinite-dimensional analog of PCA’s variance-minimizing projection.

The Linear Algebra Track Dependency Graph

Spectral Theorem
├── Singular Value Decomposition
│   └── PCA & Low-Rank Approximation (this topic)
└── Tensor Decompositions

PCA is the SVD applied to centered data. The Spectral Theorem provides the eigendecomposition of the covariance matrix. Tensor Decompositions generalize both to multilinear algebra.
